Medical Devices
Mechanical Ventilators
1. Defining the Core Concept
A mechanical ventilator is a medical device designed to assist or replace spontaneous breathing in patients whose respiratory function is compromised. It delivers air—often supplemented with oxygen—into the lungs under positive pressure, thereby supporting gas exchange until the underlying condition resolves or the patient can breathe independently. Mechanical ventilators are used in intensive care units, operating rooms, emergency departments, and sometimes at home for chronic respiratory disorders. Indications include hypoxemic and hypercapnic respiratory failure, hemodynamic instability, and the need for close ventilatory control during anesthesia. The decision to initiate mechanical ventilation involves a careful clinical assessment, as the intervention itself carries both benefits and potential harms.
2. Noninvasive vs. Invasive Ventilation
Mechanical ventilation is broadly categorized into two modalities: noninvasive and invasive. Noninvasive ventilation (NIV) delivers positive pressure through a mask or nasal interface without an artificial airway. Common forms include continuous positive airway pressure (CPAP) and bilevel positive airway pressure (BiPAP). CPAP applies a constant level of positive pressure throughout the respiratory cycle, acting as a pneumatic splint to maintain airway patency and prevent alveolar collapse. CPAP is particularly effective for treating obstructive sleep apnea and certain forms of respiratory distress in conscious patients. BiPAP, in contrast, delivers two distinct pressure levels: inspiratory positive airway pressure (IPAP) and expiratory positive airway pressure (EPAP). IPAP supports inhalation, while the lower EPAP reduces the work of exhalation. This configuration allows for more targeted support in conditions such as chronic obstructive pulmonary disease (COPD) exacerbations and obesity hypoventilation syndrome. BiPAP is also used when CPAP is not tolerated. Noninvasive machines can be used at home by patients with chronic respiratory conditions, often requiring minimal specialized training. Invasive mechanical ventilation requires an endotracheal or tracheostomy tube that passes through the mouth or nose into the trachea to maintain a patent airway. This approach is necessary for patients who are unconscious, have severe respiratory failure, or require prolonged ventilatory support. Invasive ventilation necessitates full‑time monitoring by trained specialists—such as anesthesiologists or respiratory therapists—and often involves sedation or pain management to reduce discomfort and oxygen consumption.
3. Key Ventilation Modes and Parameters
Modern ventilators offer multiple modes that can be tailored to the patient's needs. Assist-control (A/C) ventilation delivers a preset tidal volume or pressure with every breath, whether initiated by the patient or the machine. Pressure-support ventilation (PSV) augments the patient's spontaneous breaths with a fixed pressure boost, thereby reducing the work of breathing. Synchronized intermittent mandatory ventilation (SIMV) delivers a set number of mandatory breaths per minute while allowing the patient to breathe spontaneously between them. Regardless of the mode, clinicians adjust several core parameters:
- Tidal volume (VT): The volume of air delivered with each breath, typically 6–8 mL per kilogram of ideal body weight to minimize ventilator‑induced lung injury.
- Respiratory rate: The number of breaths delivered per minute, adjusted to maintain adequate minute ventilation.
- Fraction of inspired oxygen (FiO2): The oxygen concentration in the delivered air, ranging from 0.21 (room air) to 1.00 (100% oxygen). FiO2 is gradually reduced as oxygenation improves.
- Positive end-expiratory pressure (PEEP): Positive pressure maintained at the end of expiration, which helps recruit collapsed alveoli and improves oxygenation. CPAP is functionally equivalent to PEEP in spontaneously breathing patients.
- Inspiratory time and flow rate: These determine how quickly and how long air is delivered into the lungs.
These parameters are adjusted based on arterial blood gas results, lung mechanics, and the patient's clinical status. The goal is to restore homeostasis while avoiding complications such as volutrauma, barotrauma, and oxygen toxicity.
4. Mechanisms and Physiology of Positive Pressure Ventilation
Positive pressure ventilation differs fundamentally from normal spontaneous breathing, which relies on negative intrathoracic pressure generated by diaphragm contraction. Under positive pressure, air is forced into the lungs during inspiration, increasing intrathoracic pressure. This can affect hemodynamics by reducing venous return to the heart, especially in patients with hypovolemia or reduced cardiac function. CPAP maintains a continuous positive pressure, which increases functional residual capacity, reduces atelectasis, and improves ventilation‑perfusion matching. By maintaining PEEP, CPAP stabilizes alveoli and prevents collapse during both inspiration and expiration. BiPAP adds inspiratory pressure support, which can be particularly beneficial in patients with neuromuscular weakness or impaired central respiratory drive. The combination of IPAP and EPAP can be expressed numerically—for example, "15 over 8" indicates an IPAP of 15 cm H₂O and an EPAP of 8 cm H₂O. The pressure support (IPAP minus EPAP) assists in overcoming airway resistance and improving tidal volume. In invasive ventilation, PEEP is similarly applied to prevent end‑expiratory alveolar collapse, while the ventilator also ensures adequate minute ventilation through mandatory breaths.
5. Prevalence, Outcomes, and Complications
The use of mechanical ventilation is a leading reason for admission to intensive care units. Its global prevalence is substantial, though exact figures vary by region and clinical setting. According to a 2025 multicenter observational study involving 1,018 intubated patients, the incidence of ventilator‑associated events (VAE) was 185 episodes, with sub‑categories including ventilator‑associated conditions (2.33 per 1,000 ventilator days) and possible ventilator‑associated pneumonia (4.7 per 1,000 ventilator days). The mortality rate in the ventilated cohort was 59.6%, and VAE was associated with a 2.21‑fold increased risk of deaths. Ventilator‑associated pneumonia (VAP) has an estimated incidence of 10% to 25% among mechanically ventilated patients, with an all‑cause mortality ranging from 25% to 50%. VAP prolongs the duration of mechanical ventilation by approximately 7.6 to 11.5 days and extends hospital stays by 11.5 to 13.1 days compared to similar patients without VAP. Other common complications include ventilator‑induced lung injury (volutrauma and barotrauma), respiratory muscle weakness, sinusitis, and delirium. The risk of complications increases with longer ventilation durations, older age, and higher illness severity scores such as the Sequential Organ Failure Assessment (SOFA) score. In the 2025 study, risk factors for VAE included a SOFA score greater than 7 on admission, the presence of a tracheostomy, and antibiotic use within the previous 90 days.
6. Presenting the Full Picture: Balancing Benefits and Risks
Mechanical ventilation saves lives by providing time for the lungs to heal or for other treatments to take effect. For patients with acute respiratory distress syndrome (ARDS), neuromuscular disorders, or severe COPD exacerbations, it is often indispensable. However, the decision to intubate and initiate mechanical ventilation is never trivial. The benefits must be weighed against potential harms: lung injury from overdistension, cardiovascular compromise, infection, and prolonged intensive care stay. Advances in ventilation strategies—such as low tidal volume ventilation (6 mL/kg predicted body weight), lung‑protective PEEP settings, and early mobilization—have improved outcomes over the past two decades. Noninvasive modalities like CPAP and BiPAP offer the advantage of avoiding intubation and its associated risks in select patients. These modalities are often used as first‑line treatment for acute hypercapnic respiratory failure, pulmonary edema, and sleep apnea. Yet they are not suitable for all patients; those with severe encephalopathy, facial trauma, or high aspiration risk require invasive airway management. The choice between noninvasive and invasive ventilation hinges on the patient's clinical trajectory, comorbidities, and response to initial therapy.
7. Summary and Future Outlook
Mechanical ventilation remains a cornerstone of critical care and perioperative medicine. Noninvasive ventilation offers a less invasive option for stable patients, while invasive ventilation provides definitive airway control and full respiratory support for the critically ill. Future developments include closed‑loop ventilators that automatically adjust parameters based on real‑time patient data, enhanced weaning protocols driven by artificial intelligence, and improved materials to reduce biofilm formation and VAP risk. Research into lung‑protective ventilation continues to refine safe pressure and volume targets. As ventilator technology evolves, the focus will increasingly shift toward personalized, patient‑centered ventilation strategies that minimize complications while maximizing recovery.
8. Question-and-Answer Section
Q1: What is the difference between CPAP and BiPAP?
A: CPAP delivers a single constant pressure throughout the entire respiratory cycle. BiPAP provides two different pressures: a higher inspiratory positive airway pressure (IPAP) to assist inhalation and a lower expiratory positive airway pressure (EPAP) to ease exhalation. BiPAP is often better tolerated by patients who find CPAP uncomfortable and is indicated for conditions requiring inspiratory support, such as COPD exacerbations and obesity hypoventilation syndrome.
Q2: Can mechanical ventilation be performed at home?
A: Yes, noninvasive mechanical ventilation devices such as CPAP and BiPAP are commonly used at home for chronic respiratory conditions including obstructive sleep apnea, COPD, and neuromuscular diseases. Invasive home ventilation via tracheostomy is also possible but requires specialized training and ongoing monitoring by caregivers or home healthcare professionals.
Q3: What is the most common complication of mechanical ventilation?
A: Ventilator‑associated pneumonia (VAP) is one of the most common and serious complications, occurring in an estimated 10% to 25% of intubated patients. VAP increases hospital costs, prolongs mechanical ventilation and length of stay, and is associated with a mortality rate of 25% to 50%. Prevention strategies include elevating the head of the bed, daily sedation interruption, oral care with antiseptics, and using subglottic secretion drainage endotracheal tubes.
Q4: How is weaning from mechanical ventilation performed?
A: Weaning is the process of gradually reducing ventilator support until the patient can breathe independently. It often involves daily spontaneous breathing trials (SBTs), during which the patient breathes through the endotracheal tube without ventilator assistance for 30 to 120 minutes. If the patient tolerates the SBT without signs of respiratory distress, extubation is typically performed. Prolonged weaning may require gradual reduction of pressure support or transitioning to noninvasive ventilation.
Q5: What does the abbreviation "BiPAP" stand for?
A: BiPAP stands for Bilevel Positive Airway Pressure. It is a trademarked term (Respironics) that has become a general descriptor for bilevel noninvasive ventilators. Other manufacturers may use terms such as BPAP or VPAP to describe similar devices.
Q6: Is mechanical ventilation painful for patients?
A: The sensation of positive pressure ventilation is not typically painful, but the presence of an endotracheal tube can cause throat discomfort, coughing, and gagging. Sedatives and analgesics are often administered to improve tolerance and reduce anxiety. In conscious patients receiving noninvasive ventilation, mask fit and pressure settings can be adjusted to enhance comfort.
https://pmc.ncbi.nlm.nih.gov/articles/PMC12539165/
https://www.britannica.com/science/mechanical-ventilation
https://www.labamboss.com/us/knowledge/mechanical-ventilation
https://www.ncbi.nlm.nih.gov/books/NBK83160/
https://www.ncbi.nlm.nih.gov/books/NBK560531/
https://www.clevelandclinic.org/health/treatments/24268-bipa
Other Articles
Apr 10, 2026Ultrasound Diagnostic Systems: Principles, Imaging Mechanisms, and Clinical Interpretation
This article examines ultrasound diagnostic systems as non-invasive imaging technologies that use high-frequency sound waves to visualize internal structures. It defines the concept, explains the underlying physics, and explores how images are generated and interpreted. The discussion also covers system components, accuracy considerations, limitations, and future developments, followed by a structured question-and-answer section.
By Grace Nwoye, MPH
Apr 10, 2026Understanding Blood Pressure Monitors: Principles, Accuracy, and Role in Health Assessment
This article examines blood pressure monitors as medical devices used to measure arterial pressure. It outlines what blood pressure monitors are, how they work, and why they are important in health assessment. It further explores measurement principles, accuracy considerations, device types, and their role in broader health contexts. The discussion concludes with a neutral overview of limitations, future directions, and common questions.
By Dr. Peter Van Dijk

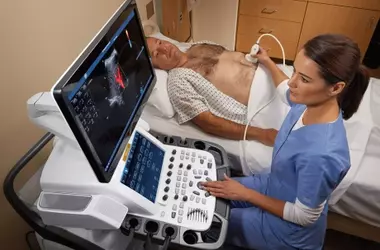

Apr 09, 2026Ultrasound Imaging Systems: Principles, Technology, and Clinical Context
